Eaton Eaton Aurora 1000 VA Line Interactive UPS

Eaton Eaton Aurora 1000 VA Line Interactive UPS Specification

Mounting Type
Desktop

Pole Type
Single Phase

Weight
Approx. 8 kg

Surface Finish
Matte

Features
Automatic Voltage Regulation (AVR), Battery Backup, Surge Protection, Cold Start, Audible Alarms

Usage & Applications
Personal computers, Workstations, Networking devices, Home/Office electronic equipment

Product Type
Line Interactive UPS

Material
ABS Plastic and Metal

Rated Power
Output Power Wattage: 600 W

Length
330 mm (approximate)

Voltage
230V AC

Lighting
LED Status Indicators

Input Voltage
170-280V AC

Working Temperature
0C to 40C

Rated Current
4.5A (maximum)

Socket
Indian 3 Pin Universal Sockets

Color
Black

Height
142 mm (approximate)

Audible Noise Level
< 40 dB at 1m

Backup Time
Up to 30 minutes (depending on load)

Waveform
Simulated Sine Wave

Overload Protection
Yes

Communication Interface
USB/RS232 (optional)

Transfer Time
< 4 ms

No. of Battery Cells
2 x 12V

Battery Type
Sealed Lead Acid Maintenance Free

Efficiency
>85% (on utility mode)

Recharge Time
6 hours to 90% capacity after complete discharge

Output Frequency
50/60 Hz 1% (auto-sensing)

Dimensions (W x D x H)
142 mm x 330 mm x 195 mm

About Eaton Eaton Aurora 1000 VA Line Interactive UPS

Specifications

Output Features

Output Voltage	1000 V
Output Frequency	140-300V & >40Hz
Output Power Wattage	600 W
Efficiency	140-300V & >40Hz %
Output Waveform	6
Transfer Time	15 ms
Number of Outlet Plugs	4

Warranty

Warranty Summary	1 Year warranty
Domestic Warranty	1 Year

Input Features

Input Voltage	1000 V
Input Frequency	140-300V & >40Hz
Phase	1
Input Plug Type	4

Battery Features

Number of Batteries

In The Box

General

Brand	Eaton
Model Number	?801028020
Type	Online/double-conversion
Form Factor	Tower Model
Model Name	Eaton Aurora 1000 VA Line Interactive UPS with inbuilt Batteries (7Ah x 2nos)
Overload Protection	Yes
Color	Black

Dimensions

Width	44.3 cm
Height	23.2 cm
Depth	28.8 cm
Weight	10.23 kg

Additional Features

Key Features

Double Boost & Buck AVR provides wide input voltage and frequency ranges (up to 140-300V & >40Hz) for wider suitability in India, Fixed input cord for easy installation and greater security, Plug & Play UPS with India outlets for easy equipment connection, Small footprint for easy installation on or under a desk 5. Overload Protection alerts user and protects UPS from damage, Overload Protection alerts user and protects UPS from damage, Microprocessor Controlled design

Convenience Features

Digital Display

Advanced Power Protection for Your Electronics

Protect valuable equipment with Eaton Aurora's advanced AVR, surge protection, and simulated sine wave technology. It guards against voltage fluctuations, surges, and outages, ensuring stable and reliable power to your devices. With fast automatic transfer and effective overload protection, your systems remain operational and secure, avoiding downtime and data loss.

Effortless Installation and User-Friendly Features

Designed for desktop mounting, the Eaton Aurora UPS is compact, lightweight, and easy to integrate into home or office setups. LED status indicators provide clear operational updates, while cold start and audible alarms simplify use. Its Indian 3 pin universal sockets accommodate a range of devices, making setup straightforward for users across India.

FAQ's of Eaton Eaton Aurora 1000 VA Line Interactive UPS:

Q: How does the Eaton Aurora 1000 VA UPS provide power backup during outages?

A: The Eaton Aurora 1000 VA employs sealed lead acid batteries and line interactive technology to supply up to 30 minutes of backup power (depending on the load) when input voltage drops or fails, ensuring continuous power to connected equipment.

Q: What devices are suitable for use with this UPS model?

A: This UPS is designed for personal computers, workstations, networking devices, and home or office electronic equipment. Its 600W output and Indian 3 pin universal sockets make it compatible with a wide range of devices typically found in Indian environments.

Q: When should I recharge the UPS, and how long does it take?

A: The UPS should be recharged after it provides backup during a power outage or when the battery indicator suggests low charge. It takes about 6 hours to reach 90% capacity following a full discharge.

Q: Where can I monitor the operational status of the UPS?

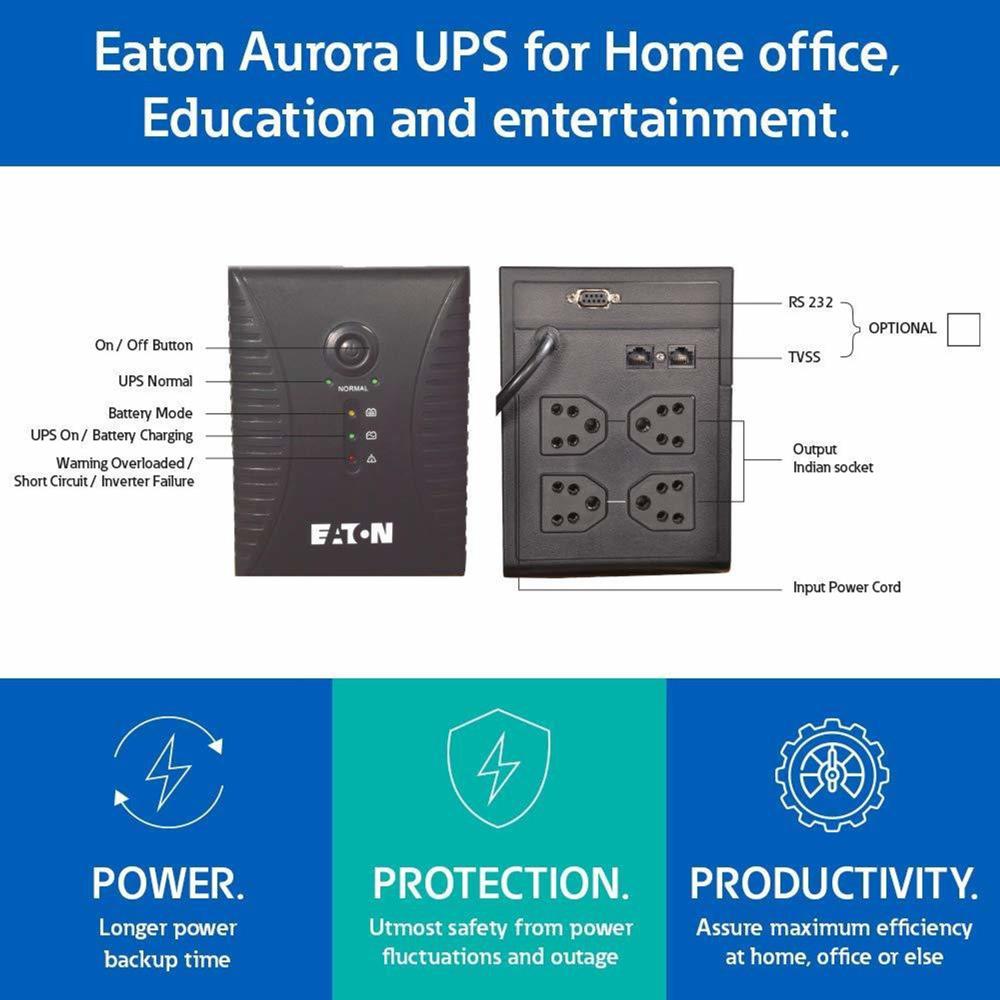

A: The UPS offers LED status indicators on its front panel, allowing users to easily check power status, battery levels, and warning alerts at a glance.

Q: What process does the UPS follow for automatic voltage regulation (AVR)?

A: AVR detects voltage fluctuations and instantly corrects under-voltage or over-voltage conditions. The process is automatic and functions continuously whenever the UPS is connected to utility power, safeguarding connected devices without user intervention.

Q: How does using this UPS benefit my home or office setup?

A: By providing battery backup, automatically regulating voltage, and protecting against surges, the Eaton Aurora prolongs the lifespan of electronics, prevents data loss during outages, and minimizes equipment downtime, which is especially valuable in critical work or home environments.
