Wipro Garnet 12W Round Downlight

Wipro Garnet 12W Round Downlight Specification

Product Type
Round Downlight

Material
Polycarbonate

Application
Indoor LED downlighting (residential, commercial, offices, retail, hospitality)

Power
12W

Light Source
SMD LED

Power Factor
>0.90

Installation Type
Recessed Mount

Cover Material
Frosted diffuser (Polycarbonate)

Finish
Matte White

Color
White

Color Temperature
6500K (Cool Daylight), also available in 4000K (Natural White) and 3000K (Warm White)

IP Rating
IP20

Dimension (L*W*H)
140 mm x 50 mm (diameter x height)

Size
140 mm (diameter)

Lighting Type
LED

Luminous Flux
1080 lumens (typical)

Operating Temperature
-10C to +50C

CRI (Color Rendering Index)
>80

Cutout Size
125 mm (recommended)

Beam Angle
120 wide beam

Shape
Round

Input Voltage
220-240V AC, 50 Hz

Lumen Efficacy
90 lm/W or above

Surge Protection
2.5 kV

Dimmable
No

Housing Material
Thermoplastic/Polycarbonate

About Wipro Garnet 12W Round Downlight

About this item

Modern Design: Wipro Alpha Downlight comes with a modern design that enhances your home ambience. Alpha Downlight has robust non-yellowing diffuser that gives soft and glare-free light
High Brightness & Energy Saving LED: The Wave Panel has a strong and high-quality light output of upto 100 Lumens/Watt. The LEDs are more efficient than conventional lights, saving upto 50% energy & electricity bills.
Wattage: 12W, Colour: Cool Day White Light (6500K), Cutout: 3 inches. Also, available in different wattages and colours.
Glare free light & Long Life: Wipro Alpha downlight comes with high quality LM 80 Tested LEDs that gives soft glare-free light for better eye comfort and ensures long life
Wide Voltage Range & High Voltage Protection: Alpha Downlight has a wide voltage range of 150-300VAC & High Voltage protection upto 440 VAC, Surge Protection upto 4 kV, protecting the device from fluctuations for long lasting performance
Versatile Downlighter: Wipro Alpha Downlight is a Concealed Junction Box downlight with 3-inch cut-out size. Its a Downlight thatYou don't have a false ceiling, no problem. It is a versatile downlight for ceiling and can be fixed in both normal and false ceiling.

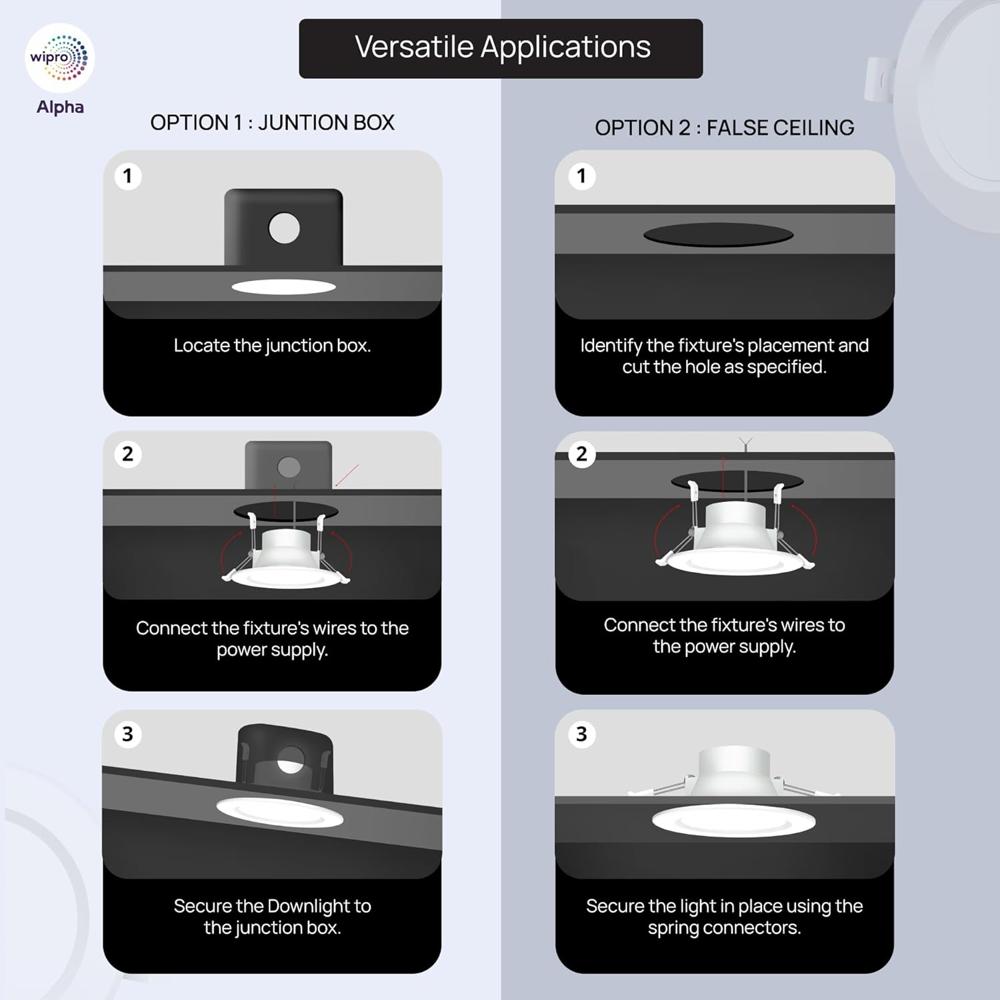

Easy Installation: The LED downlighter comes with a round fitment and easy to use Spring Clamps for hasslefree installation in your normal ceiling or false ceiling

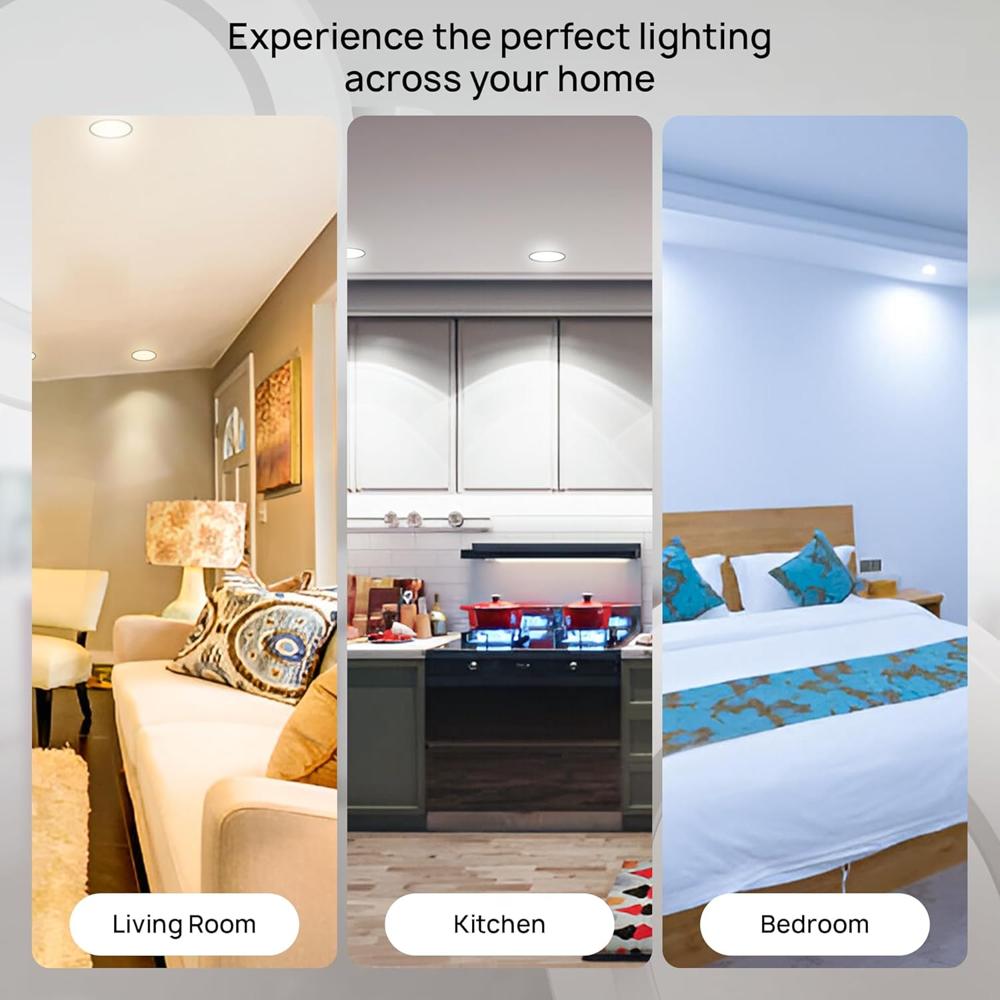

Durable & Long-Lasting Lights that are a perfect choice for your living room, corridor, bedroom, kitchen and for display in shops

Wide Application and Versatile Lighting

Engineered for versatility, the Wipro Garnet 12W Round Downlight serves a wide range of indoor environments, from homes and offices to hotels and retail outlets. Its efficient SMD LED technology ensures consistent illumination, while different color temperature options allow customization for various settings and ambiances.

High Performance and Efficiency

With a typical luminous efficacy of 90 lm/W and a robust luminous flux output of 1080 lumens, this downlight maximizes energy savings without compromising brightness. A power factor above 0.90 ensures minimal energy wastage, supported by 2.5 kV surge protection for enhanced durability even in fluctuating power conditions.

Sleek Design and Durable Build

The round shape and 140 mm matte white finish ensure the Wipro Garnet Downlight seamlessly integrates into modern interiors. Its polycarbonate thermoplastic construction and frosted diffuser allow long-lasting performance and uniform, soft light distribution, making it a suitable choice for both new projects and renovations.

FAQ's of Wipro Garnet 12W Round Downlight:

Q: How is the Wipro Garnet 12W Round Downlight installed?

A: This downlight is designed for recessed mounting and requires a cutout size of 125 mm. Secure the housing within the ceiling cutout, connect to the input voltage supply (220-240V AC, 50 Hz), and finish by placing the fixture into the recess for a seamless look.

Q: What are the benefits of choosing an LED downlight with a CRI above 80?

A: A CRI (Color Rendering Index) above 80 means the downlight delivers more accurate color appearance, making surroundings look natural and vibrant-ideal for spaces where color distinction matters, such as offices, retail shops, or homes.

Q: When should I opt for the 6500K, 4000K, or 3000K color temperature options?

A: Use 6500K (cool daylight) for energizing, alert environments like offices; 4000K (natural white) in spaces where balanced, comfortable lighting is desired, such as showrooms or kitchens; and 3000K (warm white) for creating cozy, welcoming atmospheres in living rooms or hospitality areas.

Q: Where is this downlight best suited?

A: With its IP20 rating and robust construction, this fixture is ideal for indoor locations including residences, offices, hotels, retail spaces, and similar commercial settings where stylish, reliable lighting is needed.

Q: What process should be followed for safe usage and maintenance?

A: Ensure installation is performed by a qualified electrician, and always disconnect power before cleaning or maintenance. Clean the diffuser gently with a dry cloth, and avoid exposure to moisture or water, as the product is rated for indoor use only.

Q: What makes the Wipro Garnet 12W Downlight energy-efficient?

A: It features a luminous efficacy of 90 lm/W or more, a power factor above 0.90, and integrated SMD LED technology-ensuring maximum light output per watt and reducing overall electricity consumption.
